| 型號 |

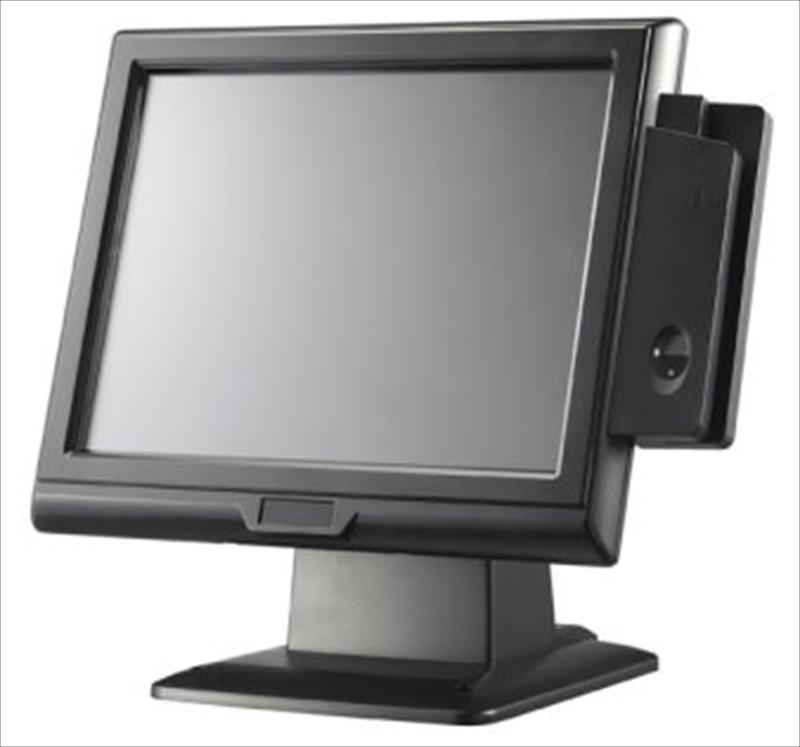

POS355 |
| 主機板 |
B68 |
C48 |
B98 |
| 中央處理器 |
Inte Atom N270 processors 1.6GHz (BGA) |
Intel Pineview D525 dual Core 1.8G L2 1M, FSB 800MHz |
Intel Celeron 1.86GHz/Core Duo2.0GHz/Core
2Duo1.66GHz(socket) |
觸
控
螢
幕 |
尺寸 |
15" TFT LCD彩色觸控螢幕(電阻式)
17" TFT LCD彩色觸控螢幕(電阻式) |
| 解析度 |
(15" TFT LCD) 1024x768
(17" TFT LCD) 1280x1024 |
| 亮度 |
(15" TFT LCD) 250cd/m2
(17" TFT LCD) 300 cd/m2 |
| 硬碟 |
1 x 2.5" SATA HDD bay |
| 記憶體 |
2 x DDR2 DIMM up to 2GB |
2×DDR3 DIMM Up to 4GB FSB 667/800 MHz |
2 x DDR2 DIMM socket up to 4GB FSB 400/533/667MHz |
| 控制晶片組 |
IntelR 945GSE + ICH7M FSB 533MHz |
CPU with Graphic built-in + ICH 8M
|
Intel 945GME + ICH7M FSB 400/533/667 MHz |
I/O
埠 |
USB埠 |
4 x USB 2.0 |
| PS2 |
1 |
| 網路埠 |
1 x RJ-45 |
| 串列埠 |
4 x COM ports RJ-45 connectors(COM1 & COM2 standard
RS-232;COM3 & COM4 pin9 with 5V / 12V power by jumper) |
| 並列埠 |
1 |
| 錢櫃控制埠 |
1 x RJ11 (12V / 19V) |
| 音源 |
1*Mic-in? 1*Line-out |
| 擴充槽 |
1*Mini PCI-E Socket |
1*Mini PCI Socket |
1*Mini PCI Socket |
| 內建喇叭 |
2X2W speakers |
| 電源 |
Adapter (DC 90W, 19V, 4.7A) |
| 安全認證 |
FCC Class A / CE Mark / LVD |
