| 型號 |

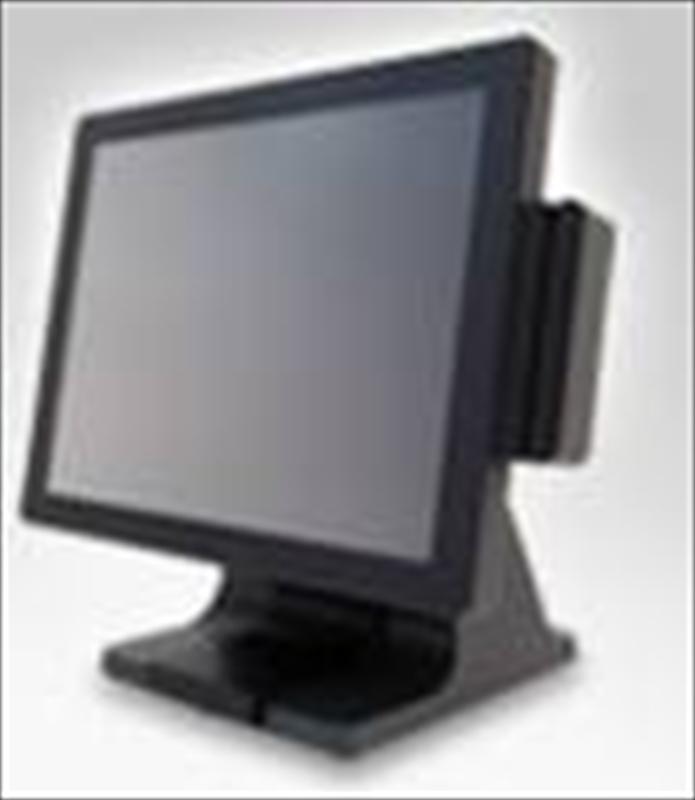

POS485 |
| 主機板 |
C48 |
C68 |
| 中央處理器 |
IntelR Pineview D525 1.8G L2 1M, Duo Core? 13W (default) |
IntelR Sandy Bridge CPU, LGA 1155-pin, 32nm
i5-2390T 2.7G, L2 6M, 35W
i3-2120 3.3G, L2 3M, 65W
Pentium G850 2.9G, L2 3M, 65W
Celeron G540 2.5G, L2 2M, 65W |
觸
控
螢
幕 |
尺寸 |
15" TFT LCD |
| 解析度 |
1024x768 |
| 亮度 |
250 cd/m2 |
| 硬碟 |
One 2.5" SATA HDD bay |
| 記憶體 |
2 x DDR3 DIMM up to 4GB FSB 800MHz |
1 x DDR3 Long-DIMM up to 8GB, FSB 1066/1333 MHz |
| 控制晶片組 |
CPU with Graphic built-in + ICH 8M |
IntelR Q67 PCH (AMT/RAID enabled)
IntelR H61 PCH (AMT/RAID disabled) |
| I/O |
USB埠 |
4 x USB 2.0 |
| 網路埠 |
1 x RJ-45 (10/100/1000Mbps Giga LAN) |
2 x RJ45 (Q67)
1 x RJ45 (H61) |
| 串列埠 |
4 x RJ-45 COM (COM1/COM2 standard RS-232 without power, COM3/COM4 powered COM with power enable/disable by BIOS setting) |
4 x RJ-45 COM ports (COM1 & COM2 standard RS-232; COM3 & COM4 powered COM with power enable / disable by BIOS setting; COM3 default 5V / COM4 default 12V) |
| 並列埠 |
1 |
| 錢櫃控制埠 |
1 x RJ-11 (12V/24V) |
| 音源 |
1 x MIC-in, 1 x Line-out
1 x Line-out |
| 擴充槽 |
PCI-E Socket x 1 |
| 喇叭 |
2 x 2W internal speaker (option) |
| 電源 |
Adapter (DC 90W, 19V, 4.7A) |
Adapter (DC 120W, 19V, 6.3A) |
